MONGOOSE 90
EVERYTHING YOUR FUTURE STAR NEEDS TO HAVE FUN AND STAY SAFE.

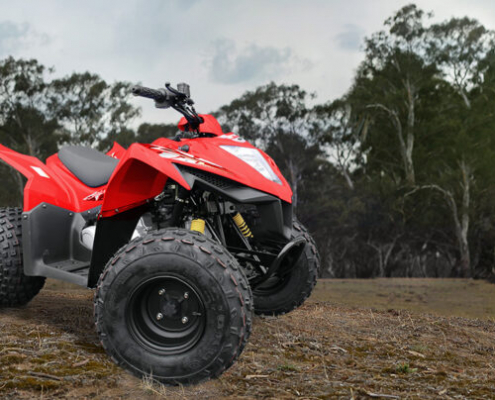

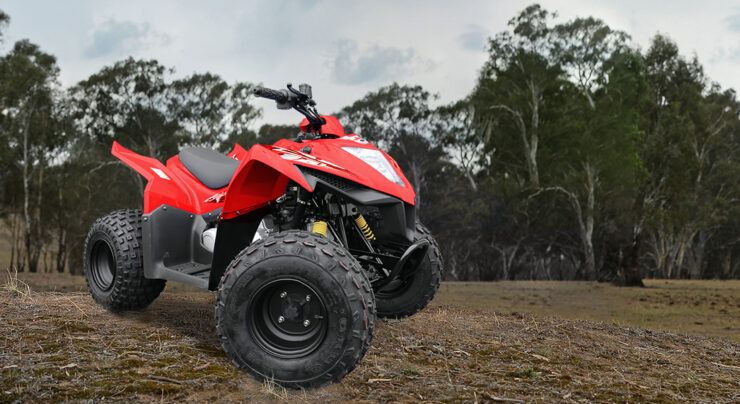

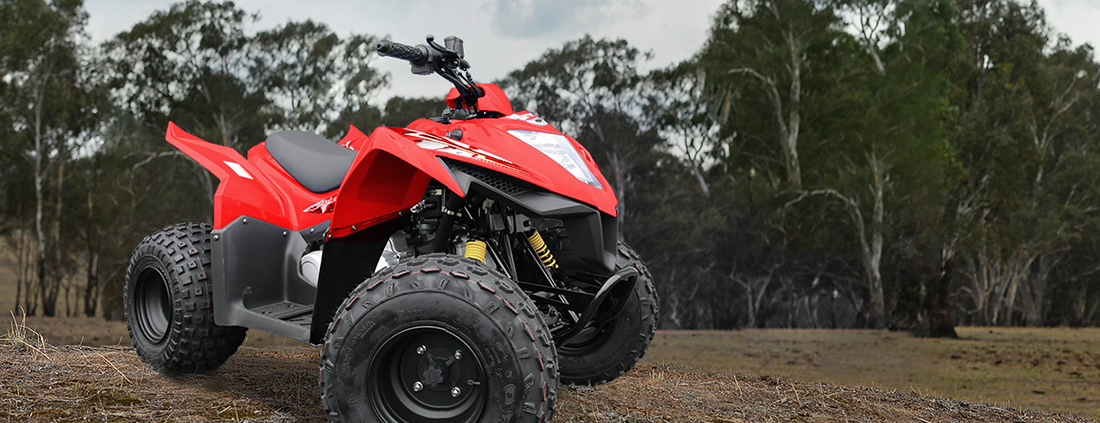

Ready to tackle the wildest adventures, KYMCO Mongoose 90 S has everything your future star needs to have fun and stay safe. Single a-arm front suspension and unit-swing rear suspension provides stable handling while the 89.9cc four-stroke engine offers reliable power. Safety conscious features like a throttle stop, ignition cut-off lanyard and keyed electric start will help keep the fun under control. With KYMCO Mongoose 90 S your future star will be ready to tackle any adventure they can find.
FEATURES
Overview
Smooth four-stroke engine
89.9cc, SOHC, air-cooled four-stroke engine provides smooth power
Twist-and-go transmission with reverse
CVT automatic transmission with reverse gear allows for easy operation
Full sized ATV type shifter
Full sized ATV type shifter for shifting between F-N-R
Soft handle bar padding
Handle bar pad offers improved rider protection
Safe keyed ignition
Keyed starting prevents operation without adult supervision
Adjustable throttle stop
Adjustable throttle stop restricts top speed until your young rider is confident
Ignition cut-off lanyard
Ignition cut-off lanyard allows adults to shut off the engine by pulling the lanyard
Simple starting
Electric start makes starting simple every time
Easy kick-start backup
Kick-start backup provides an alternative starting method
Full sized sports ATV styling
Aggressive full sized sports ATV styling
Protective wide floor boards
Full floor boards protect young rider’s feet from the wheels and debris
Designed for your future champion
Rider controls and seating position are specifically designed for kids to inspire rider confidence
Bright halogen lighting
Front halogen head lamp and rear halogen brake lamp provide enhanced visibility
Advanced braking performance
Front drum brakes and rear disc brake offer increased braking performance
Responsive front suspension
Single a-arm front suspension with twin shock absorbers for stable handling
Stable unit-swing rear suspension
Unit-swing rear suspension with single shock provides a consistent ride
Simple chain drive
Chain drive for reliable performance and simple maintenance
Factory warranty
Two year warranty ensures the fun will last for years to come
Engine
| Engine | SOHC, air-cooled, four-stroke |
| Displacement | 89.9cc |
| Power | 6.3 HP @ 7000 RPM |
| Bore x Stroke | 47 x 61.8 mm |
| Compression ratio | 10:1 |
| Fuel system | Keihin Carburettor |
| Ignition | CDI |
| Starting system | Electric with kick backup |
| Transmission | CVT automatic with reverse gear |
| Final drive | 2WD, Chain |
Suspension
| Front suspension | Single A-arm with twin shock absorbers |
| Rear suspension | Unit-swing with single shock absorber |
| Front tire size | 18 x 7 – 8 inch |
| Rear tire size | 18 x 9 – 8 inch |
| Front brakes | Dual mechanical drum |
| Rear brakes | Hydraulic disc |
Size / Weight
| Length x Width x Height | 1435 mm x 905 mm x 925 mm |
| Wheelbase | 970 mm |
| Seat height | 650 mm |
| Ground clearance | 100 mm |
| Fuel capacity | 6 l |
| Dry weight | 122 kg |
Other
| Colour choices | Red or Blue |
Factory Warranty
2-year factory program
